50-800 Cable Bridge Forming Machine to Russia
Raw material: Galvanized sheet
Thickness:1.2-2.0mm
Specification: width 50-800mm * Height 50-100mm
Tolerance: Length±1.0mm
width & height±0.5mm
Test machine according to the fixed thickness, buyer provide input coils.
Thickness:1.2-2.0mm
Specification: width 50-800mm * Height 50-100mm
Tolerance: Length±1.0mm
width & height±0.5mm
Test machine according to the fixed thickness, buyer provide input coils.
Product Details
Cable Bridge Forming Machine # 1
Technical Parameter
| Manufacturer: | Wuxi Bono Machinery Technology Co.,ltd. | ||
| Name: | Cable Bridge Forming Machine | Machine color: | White(customized according to customer’s requirement) |
| Working voltage: | 380V 50Hz 3Ph(customized according to customer’s requirement) | Touch screen language: | Chinese-English(customized according to customer’s requirement) |

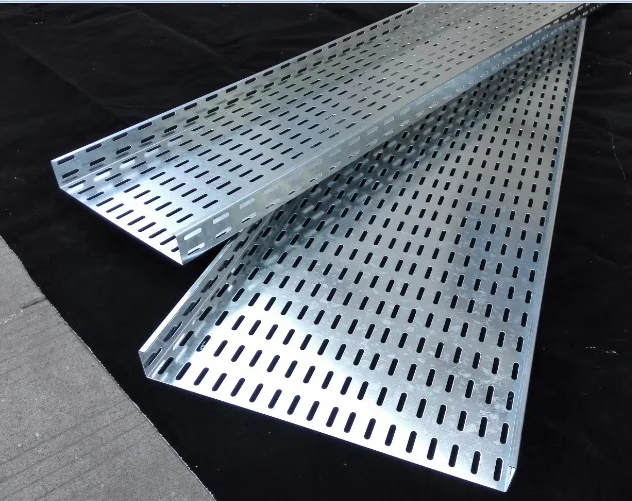

| Cable Tray Profile: |   | ||

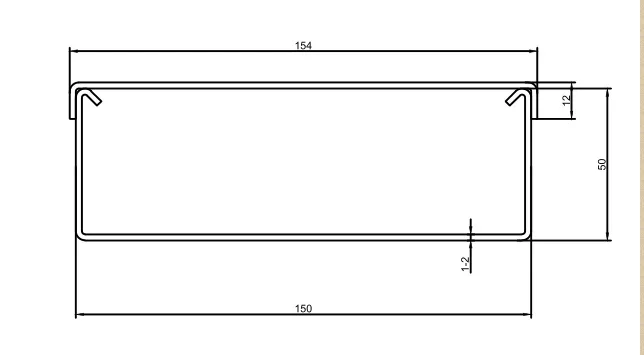

| Cable Panel profile: |   | ||
| Input Material requirements: | Raw material: Galvanized sheet | ||
| Thickness:1.2-2.0mm | |||
| Specification:width 50-800mm * Height 50-100mm | |||
| Tolerance:Length±1.0mm | |||
| width & height±0.5mm | |||
| Test machine according to the fixed thickness, buyer provide input coils. | |||
| Equipment parameter: | |||
| Process: | 10Ton Hydraulic decoiler→7-roller leveler→Servo feeding&punching→conveyor table→forming&cutting→discharging table | ||
| Flow chart: |  | ||
| 10Ton hydraulic decoiler | 7-roller leveler: | Roll forming: |
 |  |  |

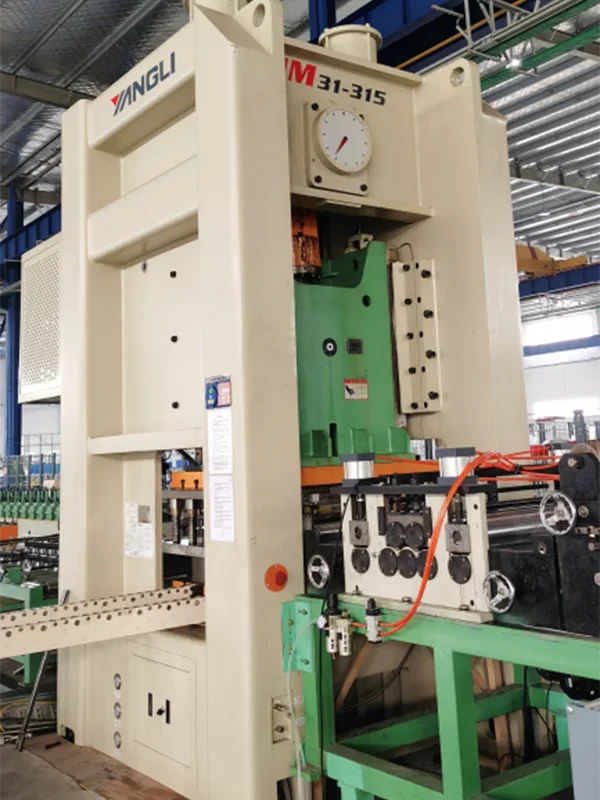

| Servo feeding&punching: | conveyor table: | Feeding and Guiding: |
 |  |  |

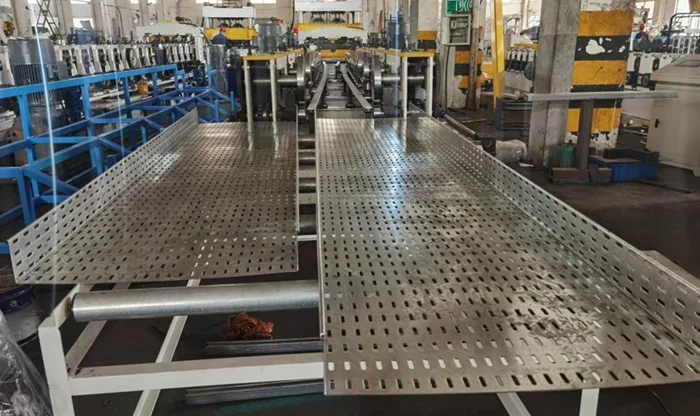

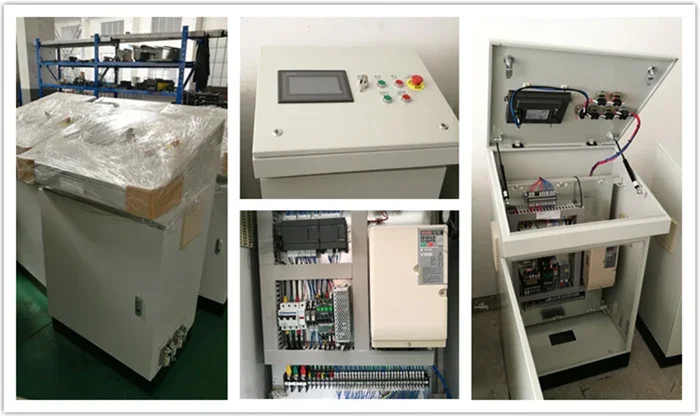

| Discharging roll table: | Electrical: |
 |  |
| ☆Pictures inserted are for reference only, final version shall prevail☆ | |
