Aluminum Coil Slitting Line
The serial lines are used for different sizes coils with different thickness to be slit into special strips as requirements .These products are for roll mill , HF tube mill, cold forming machines ,punching &press machines etc. Raw material is CR material ,HR material , silicon steel, S.S steel ,Color steel, AL ,PPGI ….;

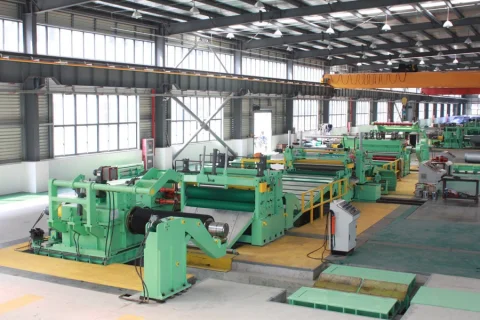

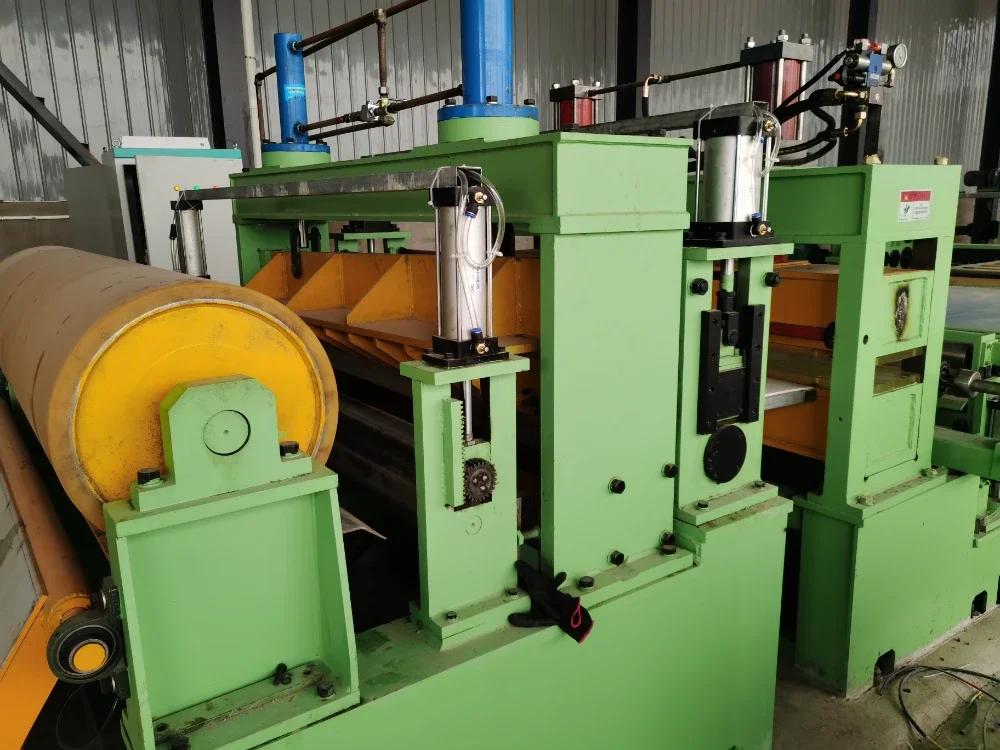

Composed of coil car-un-coiler – guiding &pinch device –slitter, side-guiding device –looping –tensioner –scrap –re-coiler –recoil car etc .
Type | WXLJ 1.5X1300 | WXLJ2.5X1600 | WXLJ3.0X1600/1800 | WXLJ4.0X2000 |
Material Thickness (Customized ) | 0.15~1.5 mm | 0.2-2.5mm | 0.3-3.0mm | 0.5-4.0mm |
Max Width (Customized ) | 1300mm | 1600mm | 1800mm | 2000mm |
Max strips (adjustable strips ) | 2-30strips | 2-25 strips | 2-20strips | 2-15strips |
Product precision | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
Max Linea speed | 300m/min | 10-200（250）m/min | 10-150（200）m/min | 10-150（200）m/min |
Max Coil Weight (Customized) | 15Tons | 25Tons | 30Tons | 30Tons |
Inner Diameter (Customized) | Ф508 &Ф610mm | Ф508 &Ф610mm | Ф508 &Ф610mm | Ф508&Ф610mm |
Outer Diameter (Customized) | Ф508 | Ф508 | Ф508 | Ф508 |
Blade shaft (adjustable according thickness) | Ф205mm | Ф220mm | Ф240mm | Ф240mm |
