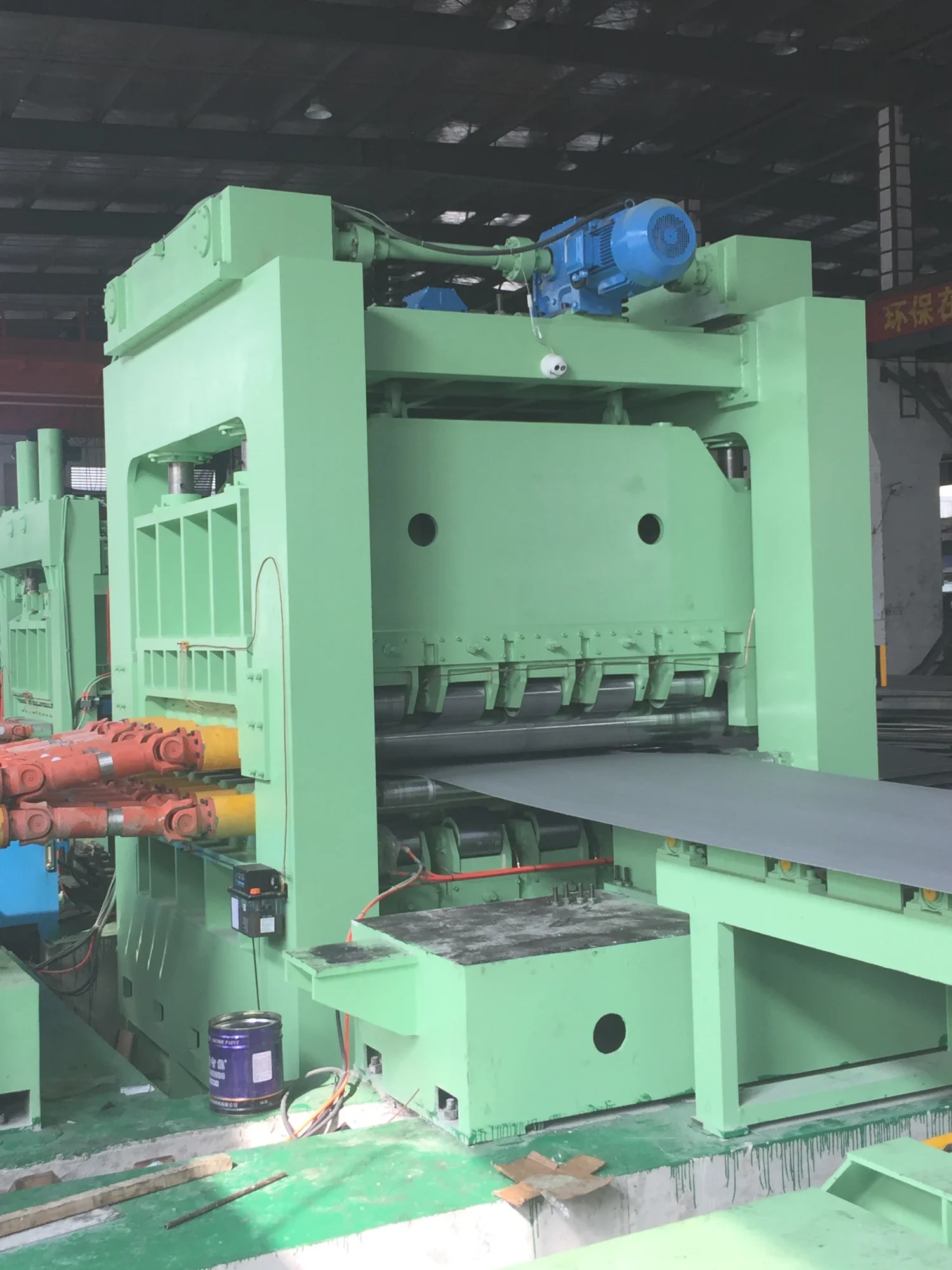

Cantilever Trimming Line
The serial lines are used for different sizes coils with different thickness to be slit into special strips as requirements . Products can be used for rolling, welded pipe, cold bending, stamping and other materials.
It can process all kinds of hot rolled coil, silicon steel plate, stainless steel plate, color plate, aluminum plate and all kinds of metal plates after electroplating or coating
Composed of un-coiler, feeder, slitter and re-coiler. Its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling, welding pipe, cold bend forming, stamping as billet. At same time, changing different material blade can slit various metal coils.
Type | Thickness Range | Max Thickness | Max Coil Weight | Min strip Width | Strips No | Max Linea Speed | Blade shaft |
WXLJ3×1600 | 0.3-3.0mm | 1600/1800mm | 30T | ≥20mm | 5-30 | 0-250m/min | Ф240 |
WXLJ4×1600 | 0.5-4.0mm | 1600/1800mm | 30T | ≥30mm | 3-30 | 0-150m/min | Ф240 |
WXLJ6×1600 | 1.0-6.0mm | 1800/2000mm | 30T | ≥40mm | 5-20 | 0-80m/min | Ф260 |
WXLJ8×2000 | 2.0-8.0mm | 1800/2000mm | 40T | ≥70mm | 5-20 | 0-50m/min | Ф300 |
WXLJ10×2200 | 3.0-10.0mm | 2000/2200mm | 40T | ≥80mm | 5-18 | 0-40m/min | Ф320 |
WXLJ12×2200 | 3.0-12.0mm | 2000/2200mm | 40T | ≥100mm | 5-20 | 0-30m/min | Ф320 |
WXLJ16×2500 | 4.0-16.0mm | 2000/2500mm | 40T | ≥100mm | ≤5 | 0-20m/min | Ф400 |
WXLJ20×2500 | 6.0-20.0mm | 2200/2500mm | 40T | ≥100mm | ≤4 | 0-20m/min | Ф480 |
