Courrgated Froming Machine
This series line is used for HR coil(0.5mm-28mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.
Product Details

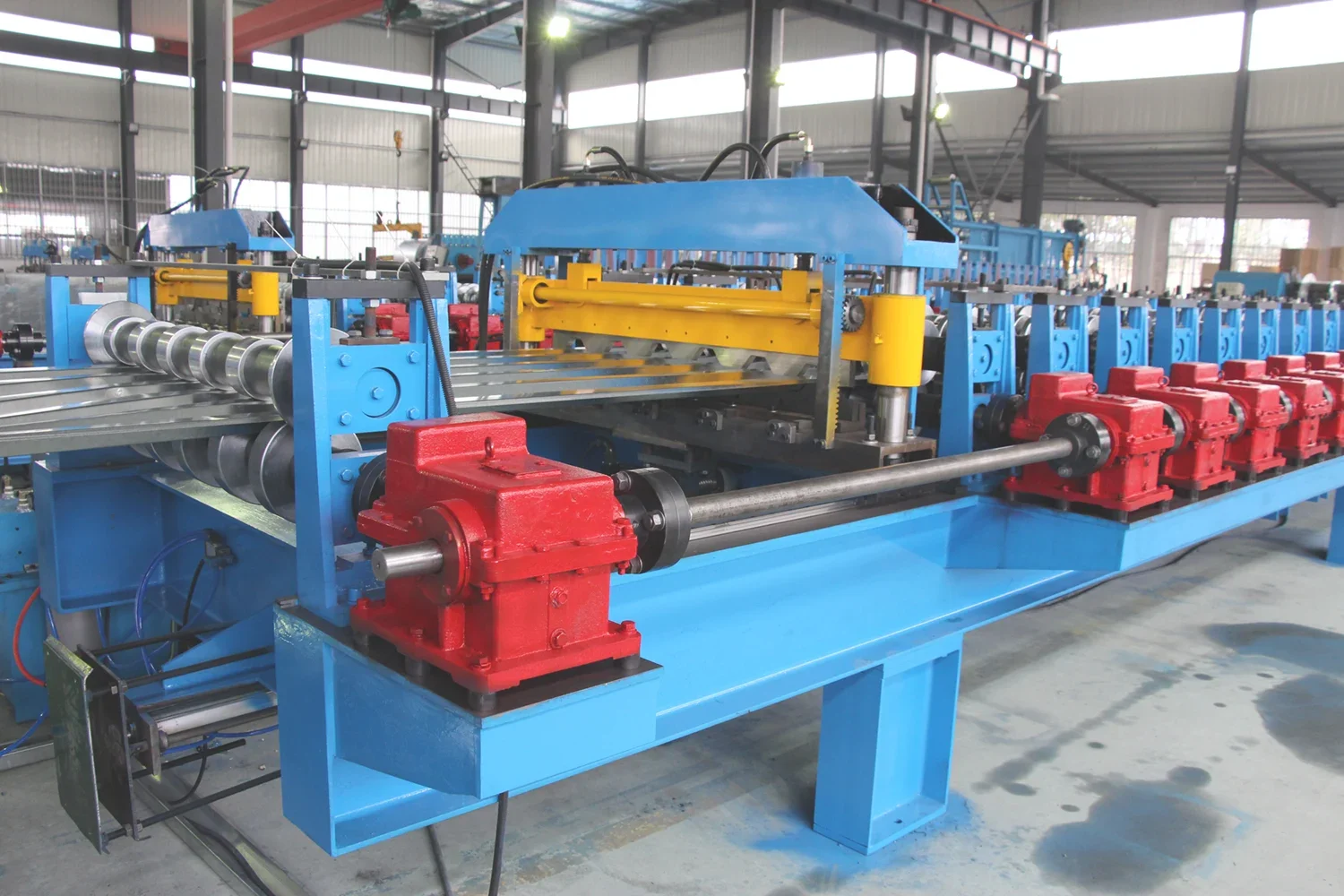

Double Layer Forming Machine Technical Scheme
| Manufactuer： | Wuxi BonoMachinery TechnologyCo.,ltd | ||||
| Name ： | Double Layer Forming MC | Color ： | White or Blue （Can be customized according to customer requirements） | ||
| Power： | 380V 50Hz 3Ph（Can be customized according to customer requirements） | Language HIM： | Chinese -English (can be customized according to customer requirements) | ||
Prolife I (The version shall be subject to the confirmation of both parties |  | ||||
Profile 2 (The version shall be subject to the confirmation of both parties) |  | ||||
| Raw material: | Low carbon steel plate (tensile strength: 200-250Mpa): 0.3 - 0.8mm; Hard steel plate (tensile strength: 350-550Mpa): 0.2 - 0.4mm; Tolerance range: ± 3mm (inspect according to the fixed thickness, and the customer provides local materials) | ||||
| Equipment parameter requirements： | |||||
| Flow chart： | Passive uncoiling - roll forming (including guided feeding) - fixed length cutting - pallet discharging | ||||
| Passive Uncoil： | Forming MC： | Stop to cut： |
 |  |  |
| Product table: | Electrical system： |
 |  |
| All schematic pictures are for reference only, and the details shall be subject to the real object | |
