Products

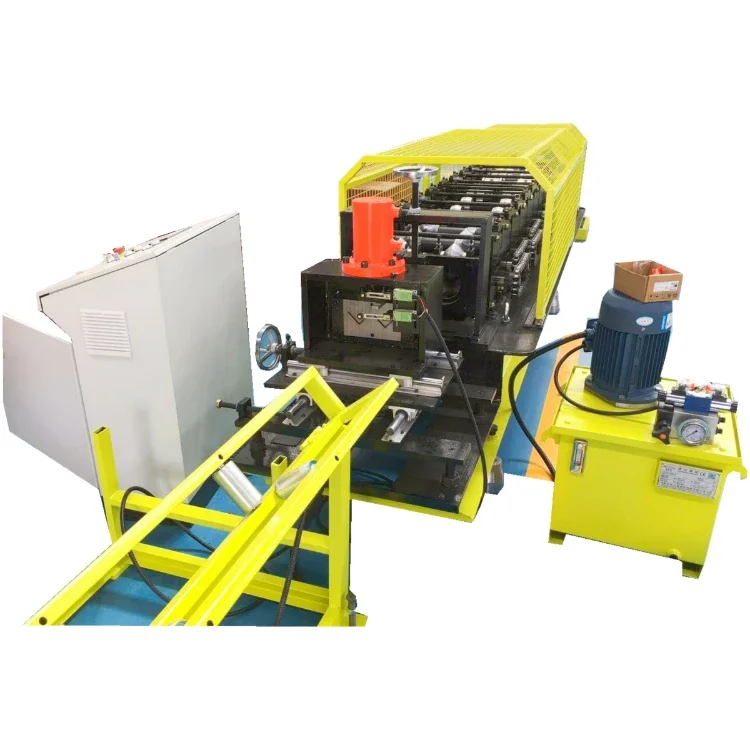

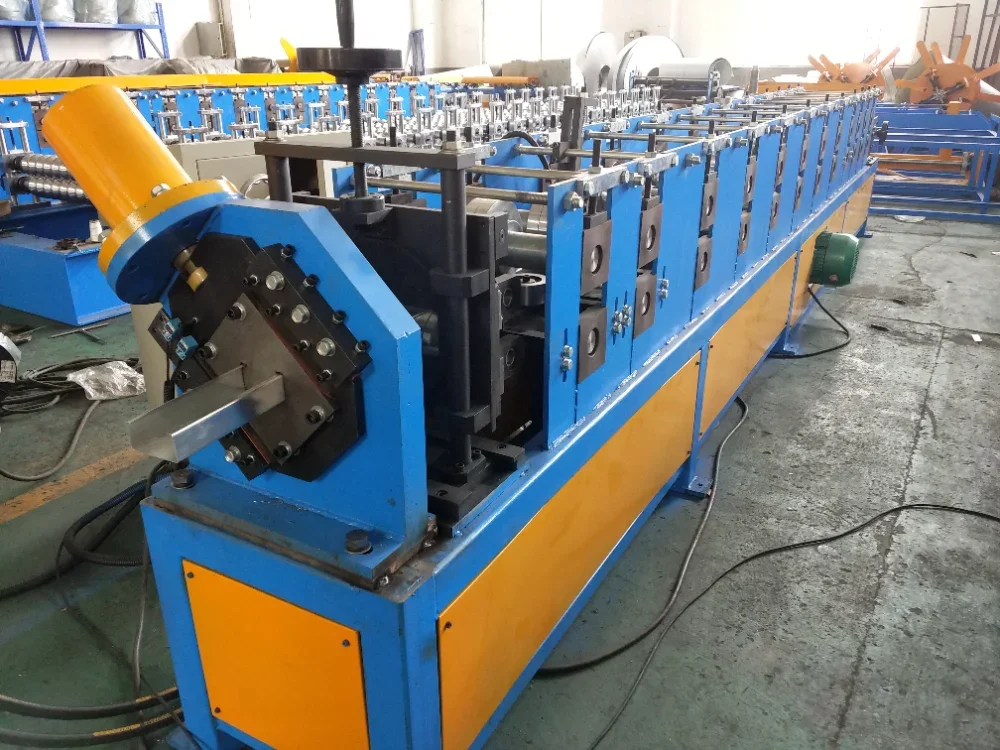

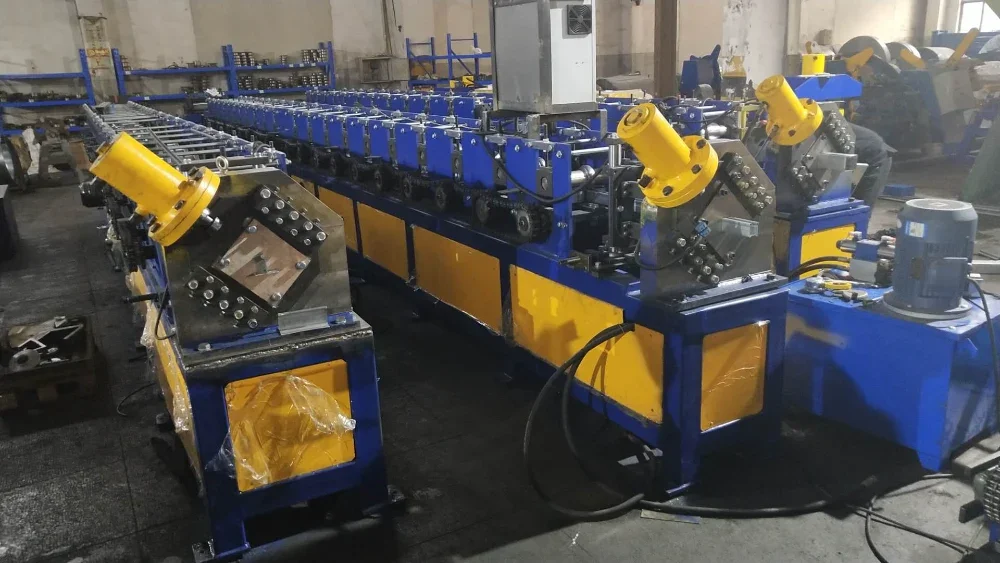

Stud Track Forming Machine
Raw material: aluminum and galvanized
Thickness: 0.4-1.0mm
Tolerance: length ±1mm width and height ±0.5mm
Acceptance is based on fixed version, fixed thickness, and local materials provided by customers
Thickness: 0.4-1.0mm
Tolerance: length ±1mm width and height ±0.5mm
Acceptance is based on fixed version, fixed thickness, and local materials provided by customers
Product Details
Basic Information
| Manufacturer: | Wuxi BONO Machinery Technology Co.,ltd | |||
| Product name: | Stud TrackForming Machine | Machine color: | White (can be customized according to customer requirements) | |
| Operating Voltage: | 380V 50Hz 3Ph (can be customized according to customer requirements) | Touch screen language: | Chinese-English (can be customized according to customer requirements) | |
| Layout diagram: (subject to the final signature and confirmation of both parties) |  | |||
| Material requirements: | Raw material: aluminum and galvanized | |||
| Thickness: 0.4-1.0mm | ||||
| Tolerance: length ±1mm width and height ±0.5mm | ||||
| Acceptance is based on fixed version, fixed thickness, and local materials provided by customers | ||||
| Device parameters: | Total motor power: about 10.5kw | |||
| Equipment size: about 15m long * 1m wide | ||||
| Equipment parameter requirements: | ||||
| Process flow: | Manual-De-coiler—Feeding —Roll Forming—Cutting—Out table | |||
| Schematic diagram of the process flow: |  | |||
| Passive uncoiler: | Feed guide: Forming Machine: | Discharge table: | Control cabinet: |
 |  |  |  |
| Schematic pictures are for reference only, the actual product shall prevail | |||
