WXLJ 5-25x2500mm CTL Line

This series line is used for HR coil(0.5mm-28mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.

manager@wxbono.com

WXLJ4-16x2200mm CTL Line

WXLJ2-12 x2200mm Slitting&CTL Combined Line

Product Details

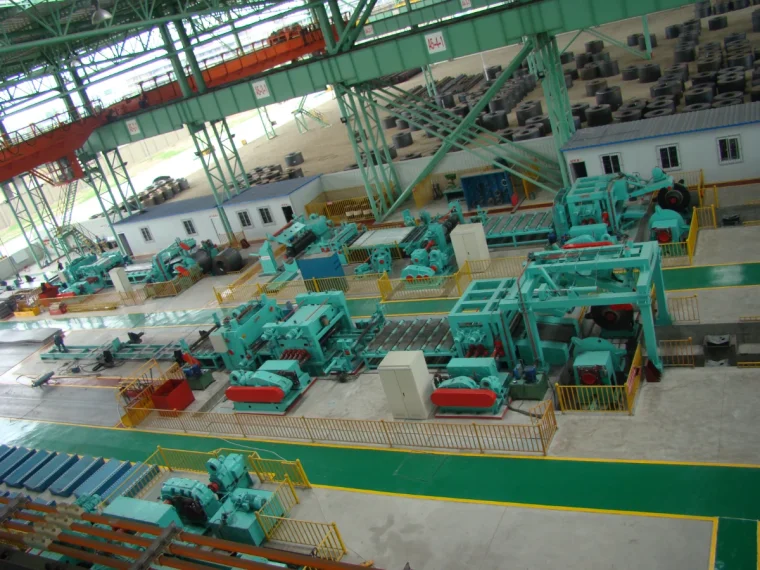

HR Coil Uncoiling-Leveling –Cut to Length Line

This series line is used for HR coil(0.5mm-28mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.

Composed of coil car, double support un-coiler, hydraulic pressing and guiding, shovel head, pre-leveler, finish leveler, cut to length machine, stacker, accompany electric control system, hydraulic system, etc. as well as pendulum middle plate, steering device.

Main parameter(or customized)

Type	WXLJ6x2000	WXLJ8x2200	WXLJ10x2000	WXLJ12x2200	WXLJ16x220	WXLJ20X2200	WXLJ25x2500
Thickness Range (Customized)	1-6mm	2-8 mm	2-10mm	3-12mm	4-16mm	6-20mm	8-25mm
Max Width Range (Customized)	2000mm	2000mm	2200mm	2200mm	2200mm	2500mm	2500mm
Cutting Length (Customized)	500-6000mm	600-8000mm	600-10000mm	800-12000mm	800-12000mm	800-12000mm	800-12000mm
Cutting precision	±0.5mm	±1mm	±1mm	±1mm	±1mm	±1mm	±1mm
Coil Weight ( Customized)	35Ton	35Ton	40Ton	40Ton	40Ton	40Ton	40Ton
Roller Diameter (Customized)	Ф140	Ф155	Ф160	Ф180	Ф200	Ф230	Ф260
