WXLJ0.3-3.0X1600 Movable CTL Line
This series of production lines can process all kinds of cold-rolled and hot-rolled coil plates, stainless steel, aluminum plates and various kinds of metal plates after electroplating or coating
Product Details
High Speed Uncoiling-Leveling-Cut to Length -Stacking Line
This series of production lines can process all kinds of cold-rolled and hot-rolled coil plates, stainless steel, aluminum plates and various kinds of metal plates after electroplating or coating, and cut them into various fixed length plates with different specifications, and can be attached with trimming function .
Composed of coil car, double support un-coiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device.
The production line is characterized by high automation, high slitting accuracy, stable and reliable machine performance, and convenient operation and maintenance.
Main Technical Parameter（or customized ）
| Type | WXLJ 1.2x1000 | WXLJ2x1300 | WXLJ3x1600 | WXLJ4x1800 | WXLJ6x2000 | WXLJ8x2200 |
| Thickness Range | 0.11-1.2mm | 0.25-2.0mm | 0.3-3.0mm | 0.5-4.0mm | 0.8-6.0mm | 1.0-8.0mm |
| Max Width | 1000mm | 1300mm | 1600mm | 1800mm | 2000mm | 2200mm |
| Linear Speed | 0-60m/min | 0-60m/min | 0-60m/min | 0-60m/min | 0-40m/min | 0-40m/min |
| Cutting length | 300-4000mm | 300-4000mm | 300-6000mm | 300-6000mm | 500-6000mm | 500-6000mm |
| Max Cutting pieces | 30pcs/min | 30pcs/min | 30pcs/min | 30pcs/min | 30pcs/min | 20pcs/min |
| Cutting Precision | ±0.3 | ±0.3 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Max Coil Weight | 15Ton | 20Ton | 30Ton | 30Ton | 40Ton | 40Ton |
| Leveling Diameter | Φ60mm | Φ65mm | Φ85mm | Φ100mm | Φ120mm | Φ150mm |

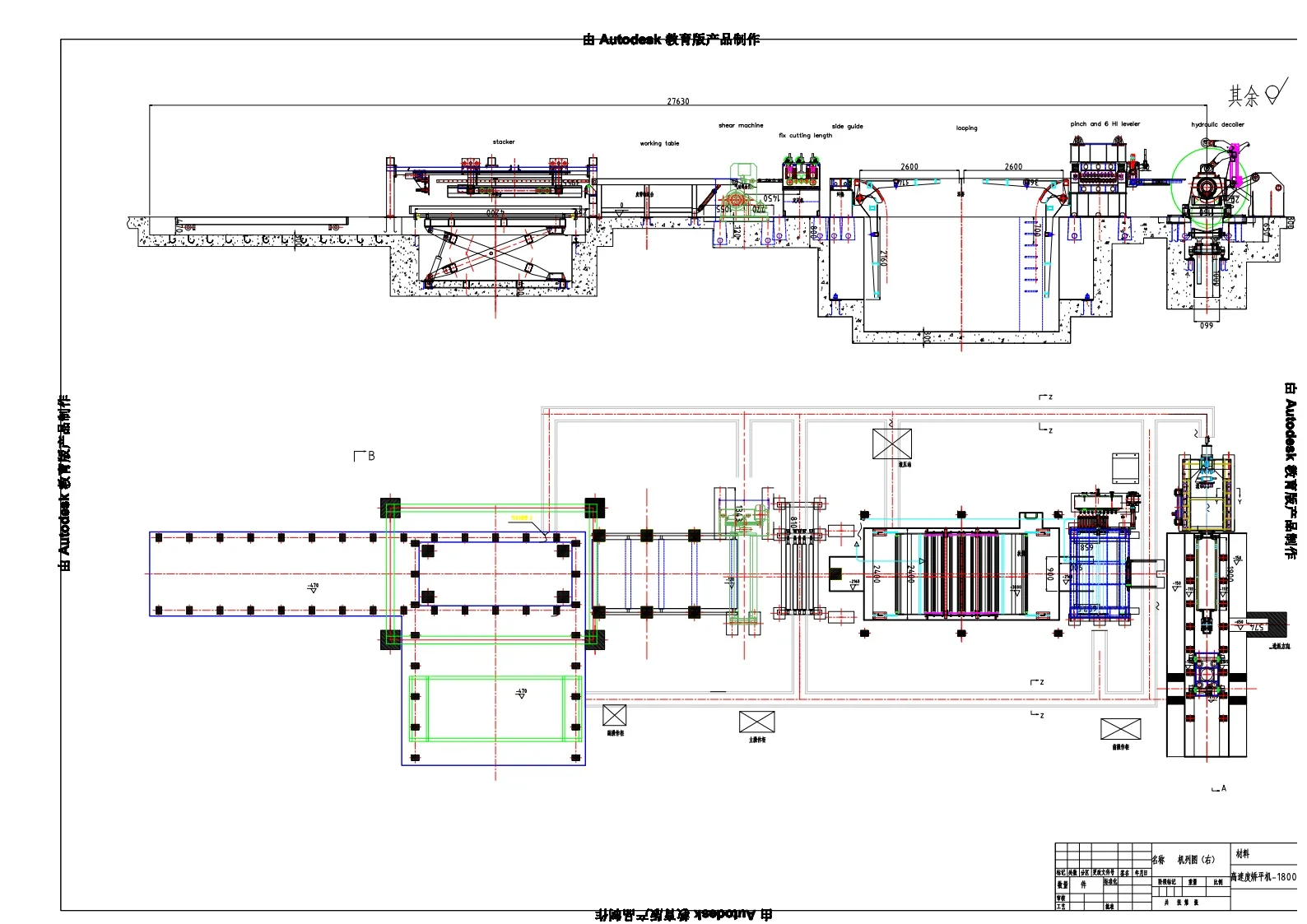

The machine Layout
