Shelf Layer Roll Forming MC
Uncoiling & leveling integrated MC -Hydraulic punching& notch punching(servo) - Roll forming – Cutting& bending – Product table
Product Details

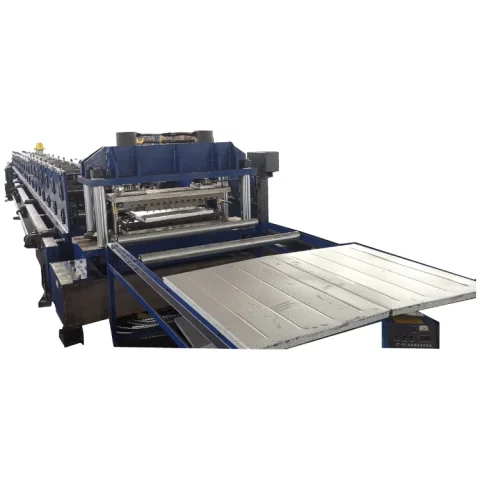

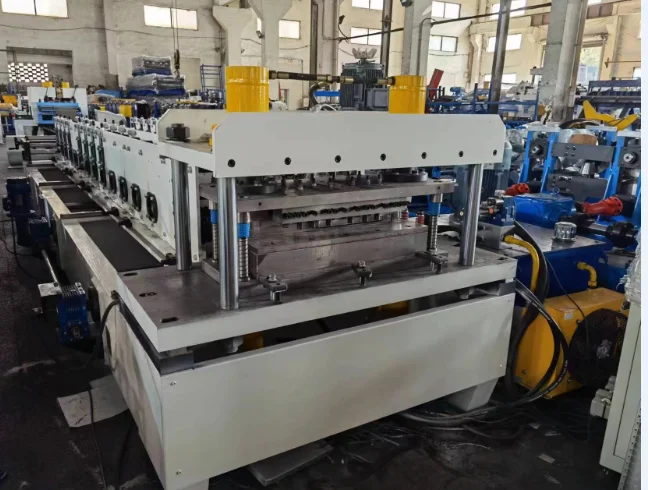

Shelf Layer Forming Machine
Technical Parameter
| Manufacturer: | Wuxi Bono Machinery Technology Co.ltd. | ||
| MC Name： | Shelf Layer late MC | MC Color ： | White +Yellow (Customized ) |
| Power：: | 380V 50Hz 3Ph（or Customized） | HIM language： | Chinese -English（or Customized） |
| Profile (customized) |  | ||
| Raw material （customized） | Raw material: galvanized sheet Thickness: 0.5-1.0mm Tolerance: length ± 1mm, width ± 0.5mm | ||
| Machine Spec. | Total power appro: 33.75KW Dimension appro : 25m*2.5m*1.2m (L*W*H) | ||
| Detailed description of machine components | |||

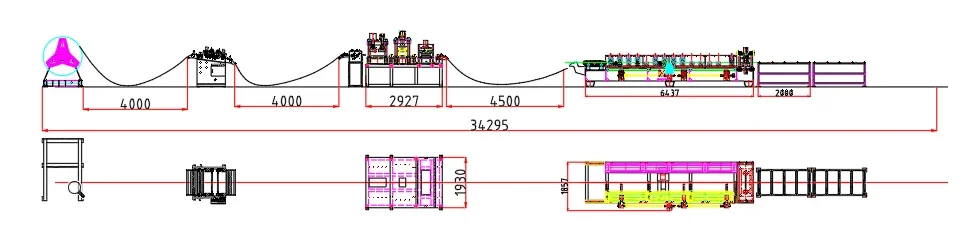

| Flow chart | Uncoiling & leveling integrated MC -Hydraulic punching& notch punching(servo) - Roll forming – Cutting& bending – Product table | ||
 | |||
| Uncoiling & leveling MC | Servo Feeder& Punching Unit | Guider &Forming MC |
 |  |  |
| Cutting &Bending ： | Output table ： | Electrical cabinet： |
 |  |  |
| Note : The pictures inserted in the scheme are for reference only, and the final one is subject to the real object. | ||
